To produce reflector, special knowhow is needed because we need to press the aluminum vapor material with protective film altogether.
Nishii Engineering has many experience, knowhow and trusts from many customers.
1. Refrector
A reflector is the metal the component that contribute to protect the environment.
Nishii Engineering is the pioneer of reflector producer.
We produce many kinds of reflectors for LED light, digital camera and next generation light source.
You can order from prototyping (minimum 1) to mass production (maximum several millions).
Features
Our reflector has high light directivity thanks to special aluminum material - MIRO2.
MIRO2 is mirrored material. Fine press tuning is needed to use that material to avoid scratch, bend and distortion. Thanks to processing knowhow of Nishii Engineering, we can produce the reflector using MIRO2. The reflector is suitable for next generation light sources.
* MIRO2 is the aluminum vapor deposition material. To avoid scratch of mirror surface, pressing is needed under the condition of film attached.

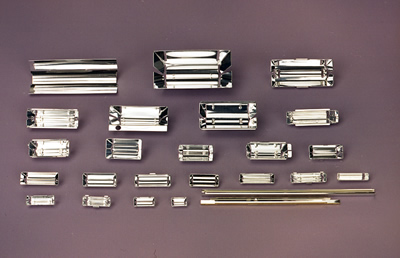

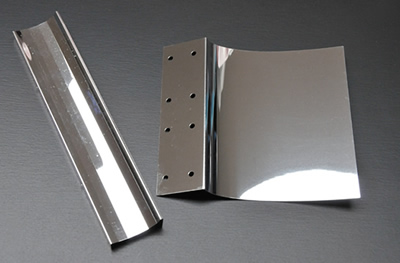

Reflector

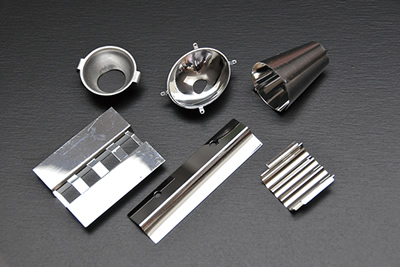

Reflectors for LED light, digital camera and next generation light source
Main character is high light directivity.
In general, the usage of reflector leads the reduction of energy because of increasing the performance of light distribution.
Page Top
2. Press products
Nishii Engineering has developed traditional precision press technology and responded to a wide range of demand.
Our press products support the progress of high quality products like camera, digital IT device and automobile.
Nishii Engineering has produced mass production precise products by using progressive transfer mold.
We have deep know-how that has met the demands of sophisticated technology such as metal press processing of 0.02 mm in thickness, optical parts not absolutely permitted of scratches, processing of special materials and so on.
In addition, we are repeatedly challenging to respond to short delivery times and cost needs, while securing high quality, and trial manufacture. Thanks to the location of Ota city in Tokyo, we have many connections to many plating companies and painting companies. So please consult us.
Specialty
Material
Any material is OK. Iron / copper / phosphor bronze / nickel silver as well as stainless steel / plastic film / mirror surface aluminum etc. We are confident with the variety of corresponding materials.
Shape
Thinness:0.02~2.00mm Drawing / bending / shallow drawing
Quality
The technology that we have cultivated in Ota city for many years is reflected in domestic and Thai factories.
Characteristic
Technical proposal
We propose a good level mold considering PM, production cut, lifetime production number, accuracy etc. As a result, we often got the positive feedback that it has become a reasonable part price from customers.
Delivery time
Utilizing the flexibility of small and medium-sized enterprises, we can flexibly deal with delivery timings for both molds and products.
International Competitiveness
We are doing optimal production according to the needs from customers by domestic plant and Thai factory.
Production example
Material:Stainless steel
Thickness:t=0.5
Camera shutter parts
Material:Aluminium
Thickness:t=0.5
Lens mount parts
Material:Aluminium
Thickness:t=0.2
Cap
Material:Iron(Nitriding treatment)
Thickness:t=0.8
Camera built-in parts
Material:Phosphor bronze
Thickness:t=0.15
Terminal
Material:Gin coat material
Thickness:t=0.8
Insert molding parts
Page Top
3. Mold making
We will create our own mold with high mold design technology and imaging a better final product to ensure reliable delivery.
In-house production of molds is indispensable in order to deliver the products to meet customer requirements with certain accuracy and quality.
We have developed advanced mold design technology every day and have worked on manufacturing press parts with high degree of difficulty such as complicated sequential processing and mirror surface parts.
Also, at the product planning stage, we are proactively conducting VE proposals that make use of these skills, and we have received further satisfaction from our customers.

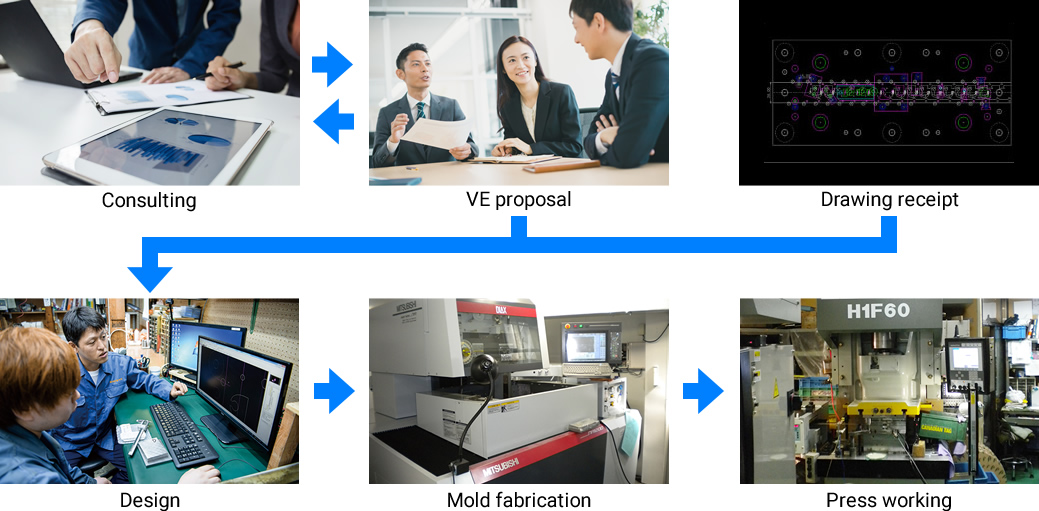

Flow from consulting to mold fabrication
Examples of ordered progressive transferred mold
- Optical part
- Camera
- Reflector
- Lens mount
- Insert molding
- Solenoid
- Automobile
Page Top
4. Proven production system of Nishii Fine Press (Thailand) Co.,ltd.
State-of-the-art equipment
Thailand factory mainly specializes in precision and small press products using 35t to 60t precision servo press. We are promoting the maintenance of major production systems such as mass production of automotive parts such as reflectors.
Mold production and maintenance system
In order to maintain stable product quality, maintenance facilities are also introduced from Japan and Japanese skilled engineers are mainly engaged in mold maintenance.
The supply quality of products is equivalent to Japan. We also support mold manufacture on site. Please contact us for more information.
Inspection level and quality control system
We bring inspection equipment from Japan, such as a stereomicroscope, and maintain the same quality as Japan.
Quality control know-how acquired in the mass production of pressed parts cultivated in Japan has been steadily penetrating in the local area, mainly by Japanese superintendents.
